Gem Sapphire crystal
Key words:
Gem Sapphire crystal
Category:
Product Details
The center is thicker than the edge and has a converging effect on the light, so it is also called a converging lens. According to different shapes, convex lenses can be divided into biconvex lenses, plano-convex lenses and meniscus lenses, etc., by refracting light to change its propagation direction, so as to achieve the effect of image magnification, reduction, handstand or upright. The special shape leads to its unique optical properties. When the light passes through the cylindrical mirror, the light will be focused into a straight line or other forms of deformation. This property gives cylindrical lenses significant advantages in changing the size of the image, such as converting a point spot into a line spot, or changing the height of the image without changing the image width.
- Product Description
-
Synthetic sapphire is a type of synthetic gemstone crystal. It is primarily used as a key material in the production of LED lights and is also an important window material used in infrared military devices, satellite space technology, and high-intensity lasers.
- Physical Properties
Crystal Symmetry Hexagonal
Lattice Constant
a = 4.75; c = 12.97

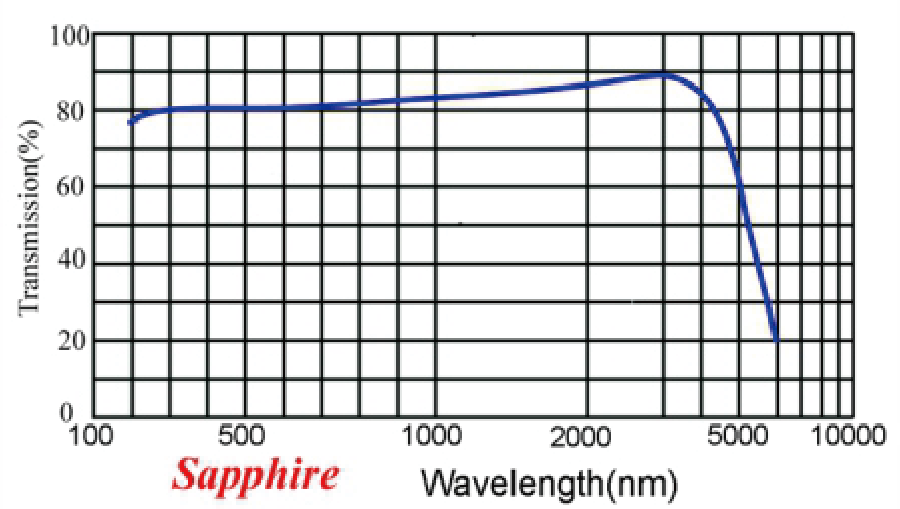

Transparence Range
0.18~4.5μm
Density
3.98 g/cm³ 3
Mohs Hardness
9
Melting Point
2030℃
Thermal Conductivity
0.04 W/m/K
Expansion Coefficient
8.4 x 10 -⁶ /K
Refractive Index
1.755
